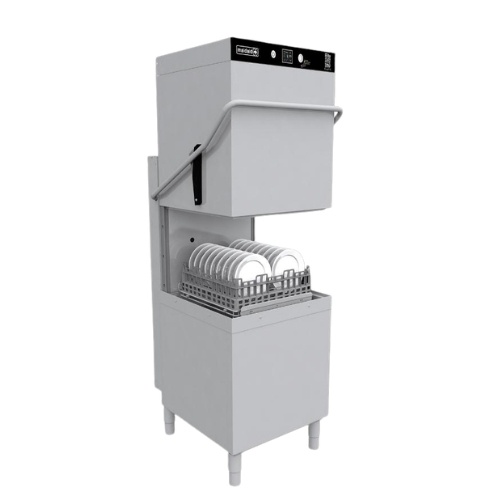

Maidaid C205WS C Range Commercial Hood Dishwasher with Internal Water Softener – Single Phase
The Maidaid C205WS C Range Commercial Hood Dishwasher provides efficient, straightforward warewashing for pubs, restaurants, cafés, hotels and professional catering kitchens. Its built-in continuous water softener helps reduce limescale build-up, making it particularly suitable for businesses operating in hard-water areas.
Designed for busy daily service, the C205WS features an eye-level LED digital display, 10 versatile programmes and an ergonomic hood handle for easy operation. A triple filtration system and quick-release wash arms simplify cleaning and maintenance, while water consumption starts from just 1.4 litres per cycle.
Accommodating 500 x 500mm racks, the machine features an integrated drain pump, breaktank and automatic chemical dosing, delivering dependable cleaning with an effective capacity of up to 38 racks per hour.
Please note this model requires a 230–240V single phase electrical supply rated at 32A. Optional accessories are available at an additional charge.
Specifications
Maidaid C205WS Commercial Hood Dishwasher
Dimensions
(W x D x H): 633 x 750 x 1560 mm
Height with hood open: 2060 mm
Adjustable feet: Up to +60 mm
Maximum useable height: 440 mm
Door opening: 470 mm
Weight
Net weight: 89 kg
Capacity
Rack size: 500 x 500 x 155 mm
Theoretical productivity: 48 Racks/h
Effective productivity: 38* Racks/h
Tank capacity: 20 L
Boiler capacity: 7 L
Plate rack capacity: Up to 18 plates
*Allowing 20 seconds for reloading. Cycle times may vary depending on local conditions/services.
Cycle Information
Total programmes: 10
Standard wash cycles: 3
Special programmes: 5
Cleaning programmes: 2
Standard cycle times: 75 / 95 / 115 Sec
Water consumption per cycle: 1.4–4.0 L
Wash temperature: 60 °C – adjustable
Rinse temperature: 82 °C – adjustable
Water Connection
Inlet water pressure: 1.0–4.0 Bar
Water inlet temperature: 10–50 °C
Water connection: ¾” BSP
Supplied drain hose: Internal 19mm Ø / External 24mm Ø
Water softener: Built-in continuous
Drain pump: Built-in
Breaktank: Standard
Power
Installed power: 230–240V – 50Hz – 1N
AMP / kW: 32 A / 6.5 kW
Wash tank element: 3.0 kW
Boiler element: 6.0 kW
Wash pump: 0.47 kW
Rinse booster pump: 0.2 kW
The manufacturer also lists a configurable 4.5 kW/20 A single phase and 6.5kW/16A three phase option. The figures above are for the standard 6.5 kW/32 A configuration.
Features
Maidaid C205WS Commercial Hood Dishwasher
Key Features
• Built in continuous water softener helping to minimise limescale build up
• Eye level LED digital display with four-button capacitive touch controls
• Scratch resistant control panel with colour-coded status indicators
• 10 programmes covering standard washing, specialist applications and cleaning
• Low water consumption from just 1.4 litres per cycle
• Low energy consumption from 0.20kWh per cycle
• 500 x 500mm rack accommodating up to 18 plates
• 470mm hood opening for larger washware
• Ergonomic stainless steel hood handle for easier operation
• Patented dual flow wash pump improving efficiency while maintaining wash performance
• Soft start wash pump helping to protect delicate washware
• Triple filtration system reducing pump wear and tear
• Quick release parallel wash and rinse arms for straightforward cleaning
• Partial drain system helping to maintain cleaner wash water
• Built in drain pump supplied as standard
• Breaktank and internal rinse booster pump supplied as standard
• Automatic detergent and rinse aid peristaltic dosing pumps
• Selectable energy saving mode and thermostop function
• Moulded wash tank with easy-access cleaning design
• Operational self diagnostics and alarms menu
• Supplied with one pegged plate rack, one open glass/cup rack and cutlery insert
• Performance tested to EN63136:2019 and hygiene tested to EN17735
• 2 year manufacturer’s warranty
