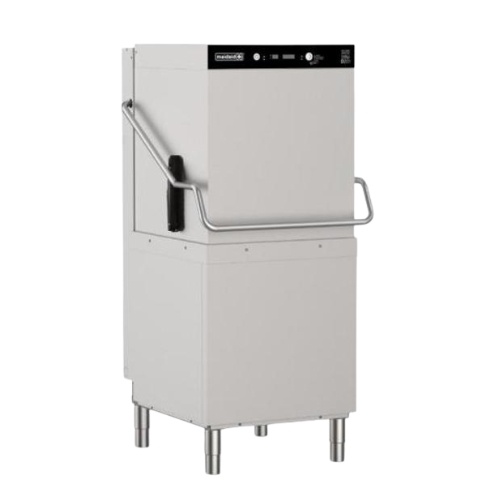

Maidaid D301 D Range Commercial Hood Dishwasher with Drain Pump – Three Phase
The Maidaid D301 is a pass through commercial hood dishwasher designed for busy high volume restaurants, hotels, pubs, schools, care homes and commercial catering kitchens. Combining reliable wash performance with low running costs, this machine uses just 1.4 litres of water and 0.21kWh of energy per cycle.
Part of the D Range, the D301 features a dual flow wash pump, triple filtration system and double skinned body to improve efficiency and reduce heat loss. Its user friendly, eye level LED display and 16 wash programmes make operation simple in demanding catering environments.
With a 500 x 500mm rack capacity, built in drain pump and productivity of up to 38 racks per hour the D301 delivers efficient cleaning throughout busy service periods.
Please note this is a three phase machine and cannot be converted to single phase. Optional accessories are available at an additional charge.
Specifications
Maidaid D301 Commercial Hood Dishwasher
Dimensions
(W x D x H): 633 x 750 x 1560 mm
Height with hood open: 2060 mm
Adjustable feet: 165–225 mm
Maximum useable height: 440 mm
Door opening: 470 mm
Weight
Net weight: 89 kg
Capacity
Rack size: 500 x 500 x 155 mm
Theoretical productivity: 48 Racks/h
Effective productivity: 38* Racks/h
Tank capacity: 22 L
Boiler capacity: 7 L
*Allowing 30 seconds for reloading. Cycle times may vary depending on local conditions/services.
Cycle Information
Total programmes: 16
Number of standard wash cycles: 3
Standard cycle times: 75/95/115 Sec
Special cycles: 10
Cleaning cycles: 3
Water consumption per cycle: 1.4–4.0 L
Wash temperature: 60 °C – adjustable
Rinse temperature: 82 °C – adjustable
Water Connection
Inlet water pressure: 1.0–4.0 Bar
Water inlet temperature: 10–50 °C
Water connection: ¾” BSP
Waste connection: 32mm Ø
Power
Installed power: 400V – 50Hz – 3N
AMP / kW: 16 A / 8.7 kW
Wash tank element: 3.0 kW
Boiler element: 5.0 kW
Wash pump: 0.7 kW
Rinse booster pump: 0.2 kW
Please note: Three phase configuration only. This machine cannot be converted to single phase.
Features
Maidaid D301 Commercial Hood Dishwasher
Key Features
• Eye level mounted dual LED digital display with colour coded machine status indicators
• Four button control fascia with operational diagnostics and alarms menu
• 16 versatile wash, specialist and cleaning programmes
• Low water consumption from just 1.4 litres per cycle
• Low energy consumption from 0.21kWh per cycle
• Double skinned body construction for improved heat retention
• Patented dual flow wash pump reducing power consumption whilst retaining wash efficiency
• Adaptive soft start wash pump protecting delicate washware and prolonging pump life
• Improved triple wash tank filtration system reducing pump wear and tear
• Quick release parallel wash and rinse arm assembly for easy cleaning
• Patented wash arm geometry optimising water distribution and cleaning performance
• Built in drain pump supplied as standard
• Breaktank and internal rinse booster pump supplied as standard
• Partial drain system providing cleaner wash water for improved wash results
• Selectable thermostop ensuring optimum rinse temperatures
• Selectable energy saving mode
• Moulded wash tank with easy access for cleaning and maintenance
• Accurate detergent and rinse aid peristaltic dosing pumps supplied as standard
• Improved ergonomic stainless steel hood handle for easy operation
• Bottle washing programmes available with optional bottle rack
• Supplied with one pegged plate rack, one open glass rack and single cutlery rack
• Tested to EN17735 hygiene and EN63136:2019 wash performance standards
• 2 year manufacturer’s warranty
